Binary and decimal
With a table of place values, from four bits to a byte, and hexadecimal by grouping bits in fours.
What do you want to practise?
Start over?
Teaching Guide: Binary and Logic Gates
Computers store everything as ones and zeros: numbers, text and pictures. Binary, units of information and logic gates are part of the computing curriculum, and the first ideas (counting in binary, shading a pixel picture) already work in Grades 5 and 6. This free generator makes binary and logic gate worksheets with a computed answer key.
- For
- Elementary 5th, 6th · Middle & High 7th, 8th, 9th, 10th (ages 10-15)
- Subject
- Technology › Computational Thinking
- Includes
- Student sheet and answer key
- Format
- A4, to print or save as PDF; new exercises every time
- Price
- Free, no sign-up
- Available in
- Catalan, Spanish, English

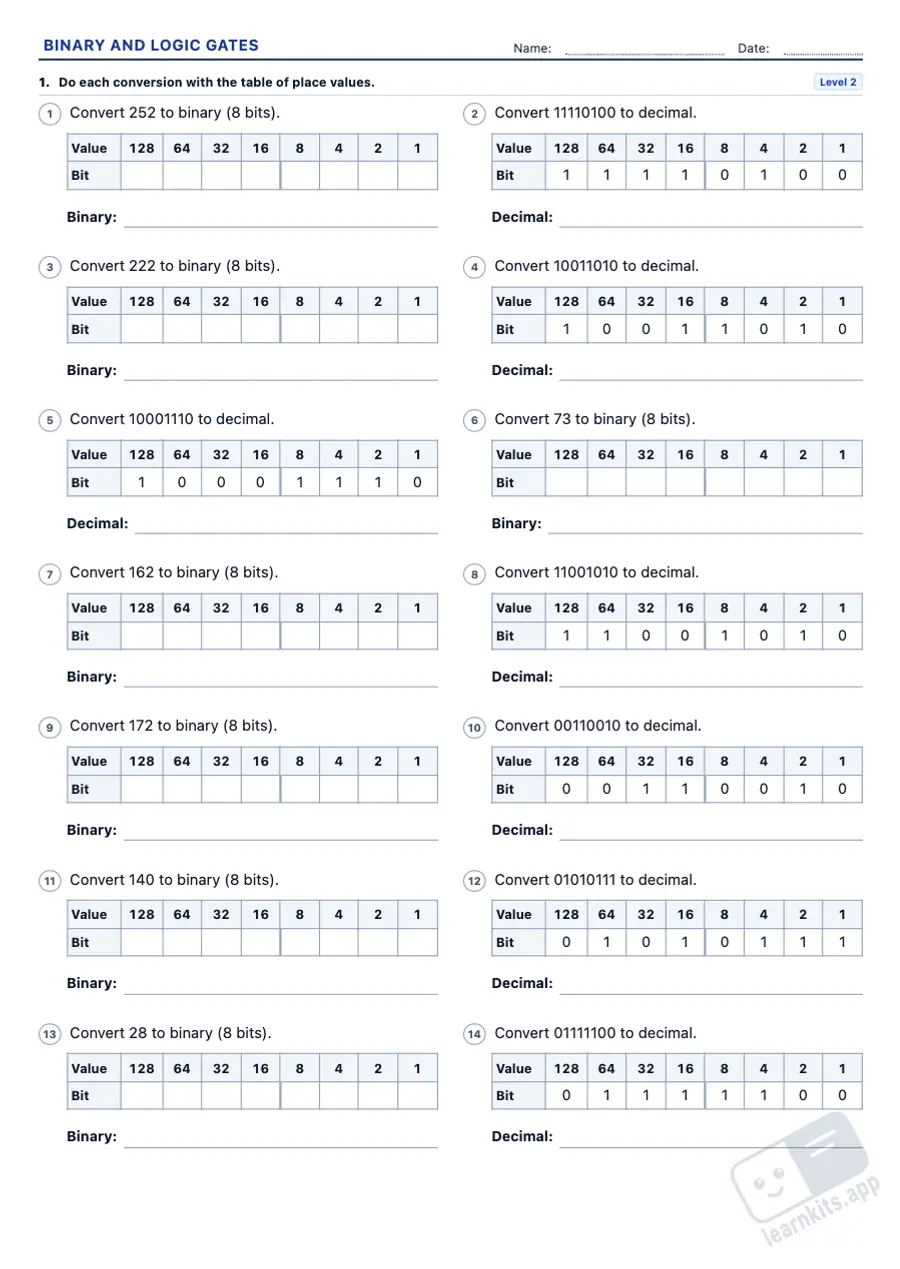

Student worksheet
Answer key Bits and bytes
Bits, bytes, KB, MB and GB with 1 KB = 1024 bytes, how many values n bits hold and how big a picture is.
Pixel pictures
Decode and encode black-and-white pictures, and run-length code to compress them.
Logic gates
AND, OR, NOT, NAND, NOR and XOR with their symbols and truth tables.
Circuits
Random circuits of two to four gates, with the whole truth table in the answer key.

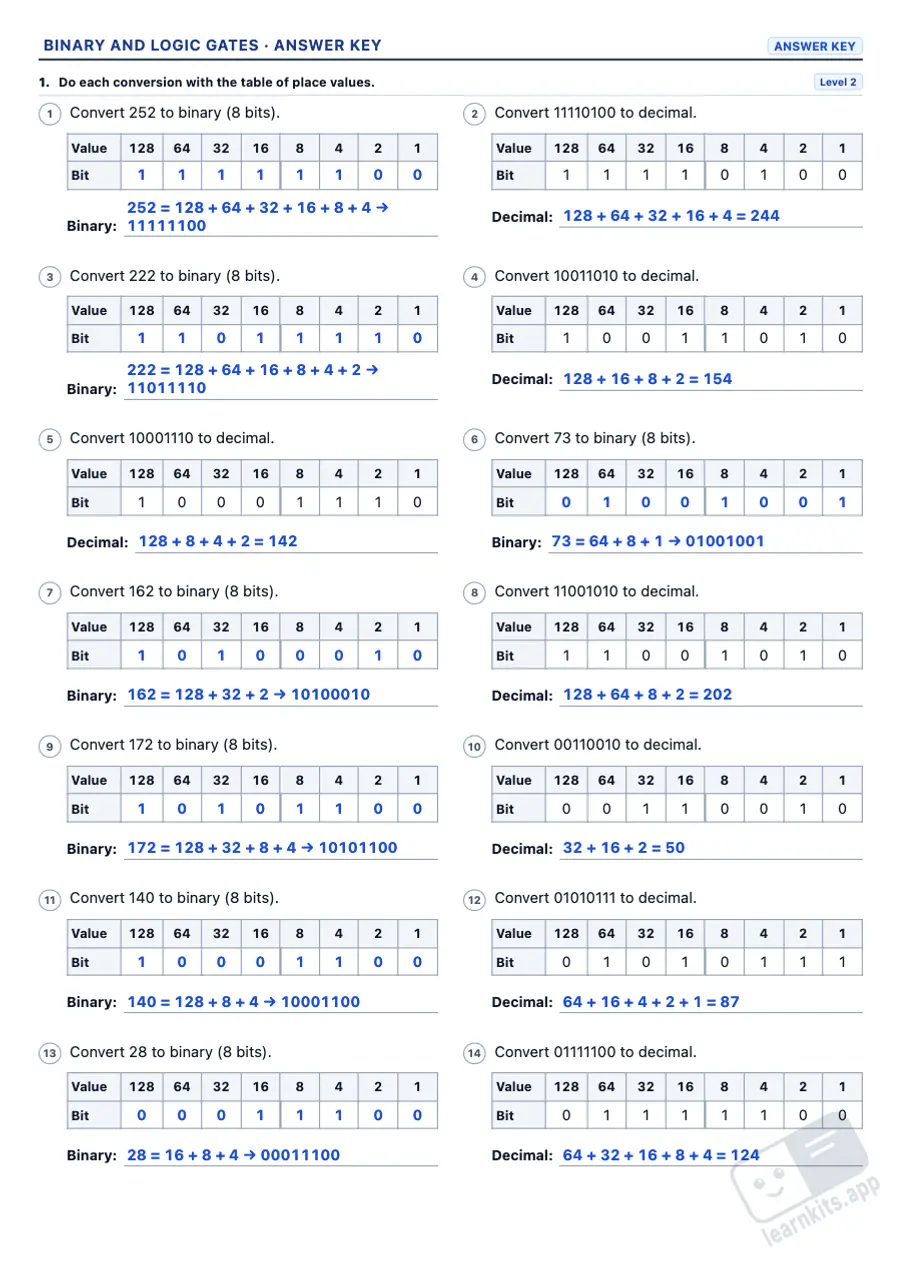

Answer key
The place values added up, the bits of every picture and every row of the truth tables.
Frequently asked questions about the binary worksheets
Which grades are they for?
Four-bit binary, bits and bytes and 6 × 6 pictures are for Grades 5-6; the byte, KB and MB and AND, OR and NOT gates for Grades 7-8; hexadecimal, NAND, NOR and XOR gates and circuits for Grades 9-10.
Is a KB 1000 or 1024 bytes?
The worksheets use 1 KB = 1024 bytes, as most school computing books do. Strictly, 1024 bytes is a kibibyte (KiB) and 1 kB is 1000 bytes; every sheet’s key says which is used.
How do I convert decimal to binary?
With the table of place values (128, 64, 32, 16, 8, 4, 2, 1): put a 1 under the largest value that fits, subtract it and carry on with what is left. You can also keep dividing by 2 and read the remainders from the bottom up.
What is run-length code?
A way to compress a picture: instead of writing every bit of a row, you write how many white squares come in a row, then how many black ones, and so on to the end. It is a classic CS Unplugged activity.
Which other worksheets go well with these?
Flowcharts and algorithms for programming, electrical circuits for electricity and grid drawing for practising picture coordinates. You will find every resource in technology worksheets.
How do I print only the answer key?
Click Print and choose “Answer key”, or “Worksheet and answer key” for both. You can also save it as a PDF from your browser’s print dialog.
More worksheet generators you may like
Unplugged Coding
Screen-free coding challenges: write the arrow code that takes the robot to the goal, run a given program or find the bug, with loops at higher levels.
Flowchart and Algorithm
Computational thinking worksheets: trace a flowchart or pseudocode with a trace table, complete the missing step, find the bug, put the steps in order and draw the flowchart, with sequence, selection and loops in three levels and an answer key.

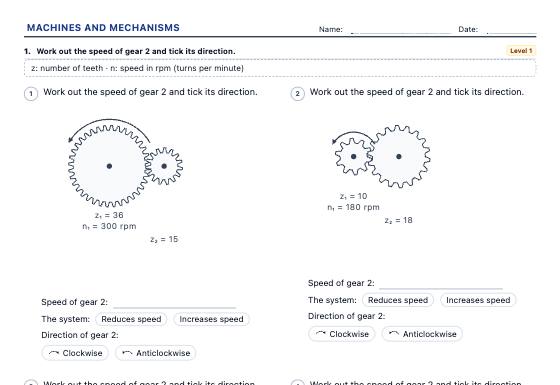

Simple Machines and Mechanisms
